Pulse sensor U501-C

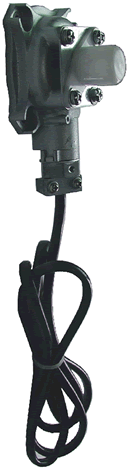

This incremental shaft encoder has been designed for heavy-duty application, especially for use in petroleum & diesel dispensing environments where potentially explosive atmospheres can be expected. It features a rugged and compact construction as well as a wide selection of mechanical and electronic variations.
fuel dispenser
fuel dispenser
fuel dispenser
fuel dispenser

Materials:
Housing: Die cast aluminum alloy
Bearings: Self-lubricating sintered bronze
Features :
fuel dispenser A high advantage in reliability and adaptability.
fuel dispenser A large selection of shaft couplings, including couplings with built-in backlash clutch facility.
fuel dispenser Standard sealing screws.
fuel dispenser The fuel resistant cable can be customized regarding length.
fuel dispenser Suit the TATSUNO meter and other meters whose pulse per circle is 60 or 100.
fuel dispenser 100% EX approved and tested.
Specifications:
fuel dispenser Power supply: 5 VDC, fixed or variable
fuel dispenser Current Consumption: Standard 10 to 30 mA, max 90mA
fuel dispenser Number of Channels: 2
fuel dispenser Number of pulses: 50 ppr
fuel dispenser Output Signal: Square wave duty cycle 50%+10%.
fuel dispenser Phase Shift: 2 channels 90° (25% +5%)
fuel dispenser Output Stage: NPN
fuel dispenser Output Current: Max. 30mA
fuel dispenser Hysteresis: Min. 0.2°
fuel dispenser Output freq. Min. 1000Hz
fuel dispenser Temperature range: Working -40°C to +70°C
fuel dispenser RPM: Max 3000RPM
fuel dispenser Mounting: With 3 pcs. M4 screws
fuel dispenser Weight: Approx. 340 gram. Excl. the cable
Wiring:

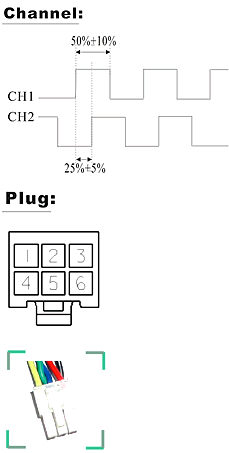

Color Channel plug
Green +5V 2
Black CH1 3
Yellow 0V 4
Blue CH2 5
Red +5V 6
--- --- 1
Package:
Cross Weight Dimension
150g/case of 1 130x100x15mm/case of 1
Approval:
The shaft encoder has been tested and granted Ex and EMC approval.The Ex-approval is EX d IIA T3.Ex certificate number is CE991209.
Ordering Specifications:
Product ID Product name
U501-C pulse sensor
Important:
The products should be used in compliance with applicable country, province and local Laws and regulations. Products selection should be based on physical Specifications and limitations and compatibility with the environmentand materials to be handled. HONGYANG makes no warranty of fitness for a particular use. All illustrations and Specifications in this literature are based on the latest products information available at the time of publication,HONGYANG reserves the right to make changes at any time in price, materials. Specifications and models and to discontinue models without notice or obligation.
