D Series CMD1687SK-G

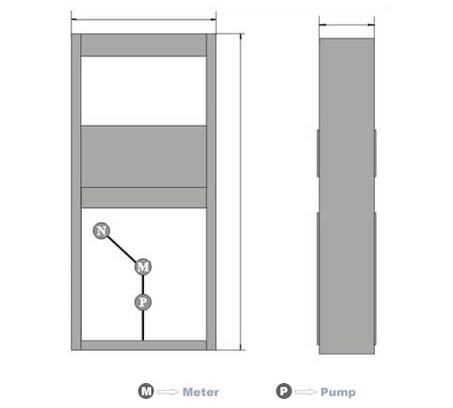

Internal Structure:

Specifications:
fuel dispenser D Series CMD1687SK-G
Pump Type Optional
Inlet Pressure ≥54kPa.
Flow rate (L/min.) 55±5
Suction Distance (m) 6(verticalmente) / 50(orizzontalmente)
FlowMeter Type Optional
Accuracy ±0.2%
Motor Voltage(V) 110V/220V/380V,50Hz/60Hz
Capacity(hp) 1HP(0.75kw)
Input Voltage 110V/220V/380V,50Hz/60Hz
Nozzle Auto Shut-off Nozzle
Environmental Condition -40℃~~+55℃
Control Type Solenold Vale Control Type
Preset Function Provided(Small LCDIndicator)
Display(Counter) Type LCD and Bright Backlight
Digit of Volume 0~~999,999(6 Digits),Decimal point can be changed
Digit of Amount 0~~999,999(6 Digits),Decimal point can be changed
Digit of Unit price 0~~9999(4 Digits),Decimal point can be changed
Digit of Total Range 0~~99,999,999,99
Optional Display Type LCD and Bright Backlight
Digit of Volume 0~~99,999,999(8 Digits),Decimal point can be changed
Digit of Amount 0~~99,999,999(8 Digits),Decimal point can be changed
Digit of Unit price 0~~999999(6 Digits),Decimal point can be changed
Digit of Total Range 0~~99,999,999,99
Totalizer 1~~9,999,999
Hose 4.5m
Weight 205kg.
Dimension(L×W×H) 900*620*2180(mm)
Dimension(L×W×H)Of Qty of Container 40ft: 45      20ft: 22

Optional:
D-GN1 D-GN2 D-GT2 D-GT2M
fuel dispenser fuel dispenser fuel dispenser fuel dispenser
